What Happens Inside a Lithium-Ion Battery

Rafiq Omair

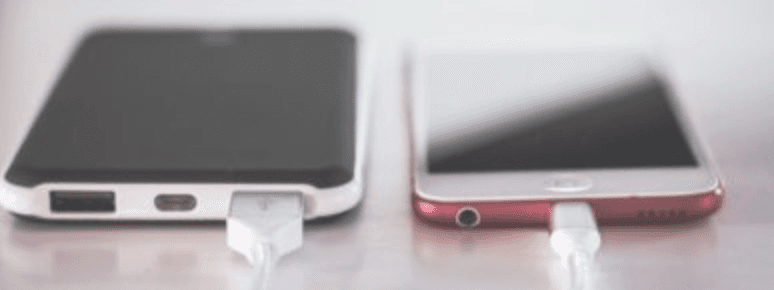

Pull your phone off the charger in the morning and you carry around the equivalent of a small, well-behaved chemistry experiment all day. It feeds your screen, your radio, your camera, and your processor for hours, then refills overnight without you thinking about it.

Almost every rechargeable device built in the last twenty years uses the same trick. So what is actually happening inside?

What any battery is really doing

A battery is a device that turns chemical energy into electrical energy on demand. When you connect it to a circuit, controlled chemical reactions release energy that pushes electrons through your device.

For most batteries, two key reactions happen in two different places, and the only way they can complete is to send electrons through your circuit on the way. That is what powers your phone or laptop.

A rechargeable battery is one where those reactions can be run backward by feeding electrical energy back in. Lithium-ion batteries are one specific chemistry that does this exceptionally well.

The four main parts

Every lithium-ion cell is built from four key components.

Anode: Usually graphite. This is where lithium hangs out when the battery is charged.
Cathode: A lithium-containing metal oxide. Common ones include LiCoO2 (cobalt oxide), LiFePO4 (iron phosphate), and various nickel-manganese-cobalt blends called NMC.
Electrolyte: A liquid (sometimes gel or solid) that lithium ions can move through, but electrons cannot.
Separator: A thin porous membrane that physically keeps the anode and cathode from touching while letting lithium ions pass.

The anode and cathode are connected to the outside world by metal terminals. Everything inside is packed tight, often rolled up like a jelly roll or stacked in thin layers, and sealed in a metal or pouch casing.

What happens when you use it

When you discharge the battery (use your phone), several things happen in lockstep.

At the anode, lithium atoms give up an electron and become lithium ions.
The electrons cannot pass through the electrolyte, so they flow out through your circuit, powering whatever you have plugged in.
Meanwhile, the lithium ions slide through the electrolyte, across the separator, and into the cathode.
At the cathode, those lithium ions combine with arriving electrons and slot into the cathode material's crystal structure.

The whole process is sometimes called a rocking chair mechanism, because lithium ions shuttle from one side to the other without leaving the battery. The cell is a closed system. Nothing is being burned or vented (in normal operation).

When you charge the battery, the same dance happens in reverse. An external voltage source pushes electrons back to the anode side and lithium ions migrate back from the cathode, ready to do it all again.

Why lithium

There is a reason every consumer electronics company landed on lithium specifically.

Lithium is the lightest metal on the periodic table. Less mass per electron stored means more energy per kilogram of battery.
Lithium gives up its outer electron easily and reliably, which means a usefully high cell voltage. A typical lithium-ion cell sits around 3.7 V, compared to 1.2 V for nickel-metal-hydride or 1.5 V for alkaline.
Lithium-ion cells can be cycled hundreds to thousands of times before significant degradation.

The combination of high energy density, high voltage, and long cycle life is what made laptops, smartphones, cordless tools, and electric vehicles practical at scale.

What slowly goes wrong

Lithium-ion batteries do not last forever. A few things gradually chip away at them.

SEI growth: A thin layer called the solid electrolyte interphase forms on the anode during the first few charges. It is necessary, but it keeps growing slowly with use, locking away lithium and increasing internal resistance.
Lithium plating: If you charge too fast or charge at very cold temperatures, lithium can deposit as metal on the anode instead of slotting in cleanly. This permanently reduces capacity and, in extreme cases, can grow tiny metal whiskers that short the cell.
Cathode degradation: The cathode crystal structure slowly distorts with repeated cycling, losing some ability to host lithium ions.
Electrolyte breakdown: Heat and high voltage drive side reactions that consume electrolyte and produce gas.

This is why your three year old phone holds less charge than it did when it was new, and why electric vehicle warranties usually specify a percentage of original capacity rather than promising none of it ever goes away.

Why they sometimes catch fire

Lithium-ion batteries store a lot of energy in a small space. If something causes a short circuit inside the cell (a manufacturing defect, mechanical damage, lithium plating gone too far), the cell can heat up rapidly. As it heats, the electrolyte breaks down and produces gas. Hot gas and damaged structure cause more shorting and more heat.

Once this loop runs away, you get what is called thermal runaway. The cell can vent flame, pressure, and toxic gases. In a battery pack with many cells, one runaway cell can trigger its neighbours.

Modern packs include layers of protection. Battery management systems monitor voltage and temperature on every cell. Fuses, vents, and physical separators try to contain failures. Manufacturers tune cell chemistry for stability rather than peak performance. The technology is broadly very safe, but the failure mode is dramatic when it does happen.

Why this matters

Lithium-ion batteries are now central infrastructure. Phones and laptops are just the start. Electric vehicles, grid storage, medical devices, drones, power tools, and aerospace systems all depend on them. The push toward decarbonization is also, in large part, a push toward better and cheaper batteries.

Understanding what goes on inside a single cell gives you a foundation for thinking about energy density, charging speed, thermal management, recycling, supply chain, and safety. These are all live engineering problems that hire entire teams in industry today.

So the next time your phone hits one percent, you know what is actually being shuffled around inside: a few grams of lithium, sliding back and forth between two electrodes, pushing electrons through your day.
